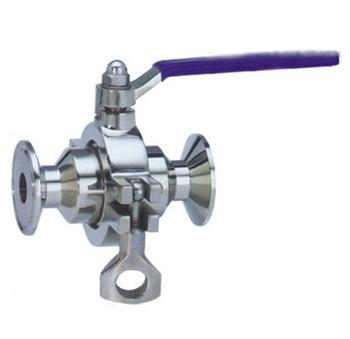

卡箍式无滞留球阀
| 卡箍式无滞留球阀/DIN | |||||
 |
Size | A | B | H | L |
| DN15 | 90.0 | 34.0 | 65.0 | 105.0 | |
| DN20 | 100.0 | 34.0 | 65.0 | 105.0 | |
| DN25 | 110.0 | 50.5 | 70.0 | 105.0 | |
| DN32 | 20.0 | 50.5 | 80.0 | 130.0 | |
| DN40 | 140.0 | 50.5 | 80.0 | 150.0 | |
| DN50 | 164.0 | 64.0 | 85.0 | 150.0 | |
| DN65 | 180.0 | 110.0 | 110.0 | 150.0 | |
