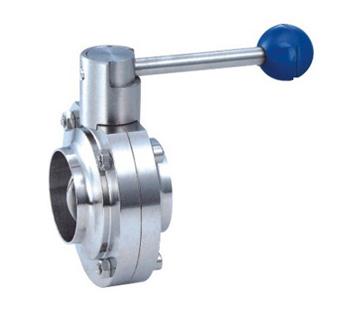

卫生级焊接式蝶阀
| 焊接式蝶阀/3A | ||||||
 |
Size | O | D | Kxk | A | H |
| 1″ | 78.0 | 12.7 | 8.0×8.0 | 50.0 | 39.0 | |
| 3/4″ | 78.0 | 19.1 | 8.0×8.0 | 50.0 | 39.0 | |
| 1″ | 78.0 | 25.4 | 8.0×8.0 | 50.0 | 39.0 | |
| 1 1/2″ | 86.0 | 38.1 | 8.0×8.0 | 50.0 | 43.0 | |
| 2″ | 102.0 | 50.8 | 10.0×10.0 | 52.0 | 51.0 | |
| 2 1/2″ | 115.0 | 63.5 | 10.0×10.0 | 56.0 | 57.5 | |
| 3″ | 128.0 | 76.2 | 10.0×10.0 | 56.0 | 64.0 | |
| 4″ | 154.0 | 101.6 | 11.0×11.0 | 64.0 | 77.0 | |
| 5″ | 215.0 | 152.4 | 11.0×11.0 | 90.0 | 107.5 | |
| 6″ | 285.0 | 203.2 | 14.0×14.0 | 90.084.0 | 142.5 | |
| 焊接式蝶阀/DIN | ||||||
 |
Size | O | D | Kxk | A | H |
| DN15 | 78.0 | 18.0 | 8.0×8.0 | 50.0 | 39.0 | |
| DN20 | 78.0 | 22.0 | 8.0×8.0 | 50.0 | 39.0 | |
| DN25 | 78.0 | 28.0 | 8.0×8.0 | 50.0 | 39.0 | |
| DN32 | 86.0 | 34.0 | 8.0×8.0 | 50.0 | 43.0 | |
| DN40 | 90.0 | 40.0 | 8.0×8.0 | 50.0 | 45.0 | |
| DN50 | 106.0 | 52.0 | 10.0×10.0 | 52.0 | 53.0 | |
| DN65 | 124.0 | 70.0 | 10.0×10.0 | 58.0 | 62.0 | |
| DN80 | 139.0 | 85.0 | 11.0×11.0 | 60.0 | 69.5 | |
| DN100 | 159.0 | 104.0 | 11.0×11.0 | 64.0 | 79.5 | |
| DN125 | 185.0 | 129.0 | 11.0×11.0 | 80.0 | 92.5 | |
| DN150 | 215.0 | 154.0 | 11.0×11.0 | 90.0 | 107.5 | |
| 焊接式蝶阀ISO/IDF | ||||||
 |
Size | O | D | Kxk | A | H |
| φ19 | 78.0 | 19.0 | 8.0×8.0 | 50.0 | 39.0 | |
| φ25 | 78.0 | 25.4 | 8.0×8.0 | 50.0 | 39.0 | |
| φ32 | 78.0 | 31.5 | 8.0×8.0 | 50.0 | 39.0 | |
| φ38 | 86.0 | 38.1 | 8.0×8.0 | 50.0 | 43.0 | |
| φ45 | 90.0 | 45.0 | 8.0×8.0 | 50.0 | 45.0 | |
| φ51 | 102.0 | 50.8 | 10.0×10.0 | 52.0 | 51.0 | |
| φ57 | 106.0 | 57.0 | 10.0×10.0 | 52.0 | 53.0 | |
| φ63 | 115.0 | 63.5 | 10.0×10.0 | 56.0 | 57.5 | |
| φ76 | 128.0 | 78.2 | 10.0×10.0 | 56.0 | 64.0 | |
| φ89 | 139.0 | 89.0 | 11.0×11.0 | 60.0 | 69.5 | |
| φ102 | 154.0 | 101.6 | 11.0×11.0 | 64.0 | 77.0 | |
| φ108 | 159.0 | 108.0 | 11.0×11.0 | 64.0 | 79.5 | |
| φ138 | 185.0 | 133.0 | 11.0×11.0 | 80.0 | 92.5 | |
| φ159 | 215.0 | 159.0 | 11.0×11.0 | 80.0 | 107.5 | |
| φ219 | 285.0 | 219.0 | 14.0×14.0 | 90.0 | 142.5 | |
| 焊接式蝶阀/SMS | ||||||
 |
Size | O | Kxk | A | H | |
| 19 | 78.0 | 8.0×8.0 | 50.0 | 39.0 | ||
| 25 | 78.0 | 8.0×8.0 | 50.0 | 39.0 | ||
| 32 | 78.0 | 8.0×8.0 | 50.0 | 39.0 | ||
| 38 | 85.0 | 8.0×8.0 | 52.0 | 43.0 | ||
| 51 | 102.0 | 10.0×10.0 | 56.0 | 51.0 | ||
| 63 | 115.0 | 10.0×10.0 | 56.0 | 57.5 | ||
| 78 | 128.0 | 10.0×10.0 | 56.0 | 64.0 | ||
| 89 | 139.0 | 11.0×11.0 | 60.0 | 69.5 | ||
| 102 | 154.0 | 11.0×11.0 | 64.0 | 77.0 | ||
