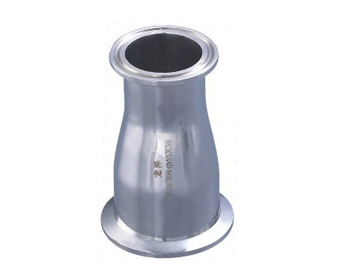

不锈钢卡箍式大小头
| 卡箍式大小头 | ||||
 |
Size | A | B | Ba |
| DN20/15 | 88.0 | 34.0 | 34.0 | |
| DN25/20 | 86.0 | 50.5 | 34.0 | |
| DN32/20 | 106.0 | 50.5 | 34.0 | |
| DN32/25 | 106.0 | 50.5 | 50.5 | |
| DN40/20 | 128.0 | 50.5 | 34.0 | |
| DN40/25 | 128.0 | 50.5 | 50.5 | |
| DN40/32 | 128.0 | 50.5 | 50.5 | |
| DN50/25 | 141.0 | 64.0 | 50.5 | |
| DN50/32 | 141.0 | 64.0 | 50.5 | |
| DN50/40 | 141.0 | 64.0 | 50.5 | |
| DN65/25 | 151.0 | 91.0 | 50.5 | |
 |
DN68/25 | 151.0 | 91.0 | 50.5 |
| DN65/32 | 151.0 | 91.0 | 50.5 | |
| DN65/40 | 148.0 | 91.0 | 50.5 | |
| DN65/50 | 148.0 | 91.0 | 64.0 | |
| DN80/40 | 166.0 | 106.0 | 60.5 | |
| DN80/50 | 151.0 | 106.0 | 64.0 | |
| DN80/65 | 146.0 | 106.0 | 91.0 | |
| DN100/60 | 192.0 | 119.0 | 64.0 | |
| DN100/65 | 159.0 | 119.0 | 91.0 | |
| DN100/80 | 162.0 | 119.0 | 106.0 |
| 卡箍式大小头 | ||||
 |
Size | A | B | Ba |
| 1.0″/0.75″ | 64.0 | 50.5 | 34.0 | |
| 1.25″/1.0″ | 76.0 | 50.5 | 50.5 | |
| 1.5″/1.25″ | 76.0 | 50.5 | 50.5 | |
| 1.5″/1.0″ | 76.0 | 50.5 | 50.5 | |
| 2.0″/1.5″ | 93.0 | 64.0 | 50.5 | |
| 2.0″/1.25″ | 93.0 | 64.0 | 50.5 | |
| 2.0″/1.0″ | 93.0 | 64.0 | 50.5 | |
| 2.5″/2.0″ | 93.0 | 77.5 | 64.0 | |
| 2.5″/1.5″ | 93.0 | 77.5 | 50.5 | |
| 2.5″/1.0″ | 93.0 | 77.5 | 50.5 | |
| 3.0″/2.5″ | 93.0 | 91.0 | 77.5 | |
| 3.0″/2.0″ | 93.0 | 91.0 | 64.0 | |
| 3.0″/1.5″ | 93.0 | 91.0 | 50.5 | |
| 3.5″/3.0″ | 93.0 | 108.0 | 91.0 | |
| 3.5″/2.5″ | 93.0 | 108.0 | 77.5 | |
| 3.5″/2.0″ | 93.0 | 108.0 | 64.0 | |
| 4.0″/3.5″ | 118.0 | 119.0 | 108.0 | |
| 4.0″/3.0″ | 118.0 | 119.0 | 91.0 | |
| 4.0″/2.5″ | 118.0 | 119.0 | 77.5 | |
| 4.0″/2.0″ | 118.0 | 119.0 | 64.0 | |
| 卡箍式大小头 | ||||
 |
Size | A | B | Ba |
| 1.5″/1.0″ | 76.2 | 50.5 | 50.5 | |
| 2.0″/1.0″ | 127.0 | 64.0 | 50.5 | |
| 2.0″/1.5″ | 76.2 | 64.0 | 50.5 | |
| 2.5″/1.5″ | 127.0 | 77.5 | 50.5 | |
| 2.5″/2.0″ | 76.2 | 77.5 | 64.0 | |
| 3.0″/1.5″ | 177.8 | 91.0 | 50.5 | |
| 3.0″/2.0″ | 127.0 | 91.0 | 64.0 | |
| 3.0″/2.5″ | 76.2 | 91.0 | 77.5 | |
| 4.0″/2.0″ | 231.8 | 119.0 | 64.0 | |
| 4.0″/2.5″ | 181.0 | 119.0 | 77.5 | |
| 4.0″/3.0″ | 130.2 | 119.0 | 91.0 | |
