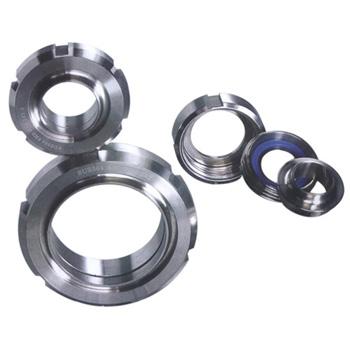

304不锈钢卫生级活接头
| 圆螺母 | ||||||
 |
Size | A | G | D5 | C | |
| DN15 | 18.0 | RD34×1/8 | 44.0 | 25.0 | ||
| DN20 | 20.0 | RD44×1/8 | 54.0 | 31.0 | ||
| DN25 | 21.0 | RD52×1/8 | 63.0 | 36.0 | ||
| DN32 | 21.0 | RD58×1/8 | 70.0 | 42.0 | ||
| DN40 | 21.0 | RD65×1/8 | 78.0 | 49.0 | ||
| DN50 | 22.0 | RD78×1/8 | 92.0 | 62.0 | ||
| DN65 | 25.0 | RD95×1/8 | 110.0 | 80.0 | ||
| DN80 | 27.0 | RD110×1/4 | 125.0 | 94.0 | ||
| DN100 | 29.0 | RD130×1/4 | 148.0 | 115.0 | ||
| DN125 | 32.0 | RD160×1/4 | 178.0 | 138.0 | ||
| DN150 | 38.0 | RD190×1/4 | 210.0 | 164.0 | ||
| 螺纹接头 | ||||||
 |
Size | A | D | G | ||
| DN15 | 17.0 | 18.0 | RD34×1/8 | |||
| DN20 | 19.0 | 22.0 | RD44×1/8 | |||
| DN25 | 20.0 | 28.0 | RD52×1/8 | |||
| DN32 | 20.0 | 34.0 | RD58×1/8 | |||
| DN40 | 20.0 | 40.0 | RD65×1/8 | |||
| DN50 | 21.0 | 52.0 | RD78×1/8 | |||
| DN65 | 23.0 | 70.0 | RD95×1/8 | |||
| DN80 | 25.0 | 85.0 | RD110×1/4 | |||
| DN100 | 28.0 | 104.0 | RD130×1/4 | |||
| DN125 | 30.0 | 129.0 | RD160×1/4 | |||
| DN150 | 35.0 | 154.0 | RD190×1/4 | |||
| 平接头 | ||||||
 |
Size | A | D | D1 | ||
| DN15 | 13.0 | 18.0 | 28.0 | |||
| DN20 | 15.0 | 22.0 | 38.0 | |||
| DN25 | 17.0 | 28.0 | 44.0 | |||
| DN32 | 17.0 | 34.0 | 50.0 | |||
| DN40 | 19.0 | 40.0 | 56.0 | |||
| DN50 | 20.0 | 52.0 | 68.0 | |||
| DN65 | 20.0 | 70.0 | 88.0 | |||
| DN80 | 23.0 | 85.0 | 100.0 | |||
| DN100 | 26.0 | 104.0 | 121.0 | |||
| DN125 | 33.0 | 129.0 | 150.0 | |||
| DN150 | 34.0 | 154.0 | 178.0 | |||
