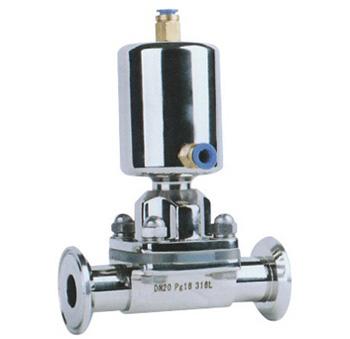

气动隔膜阀
| 气动隔膜阀/3A .法兰式标准可根据客户要求 | ||||||
 |
Size | A | B | H | H1 | Dc |
| 1/2″ | 100.0 | 25.4 | 156.3 | 98.0 | 63.5 | |
| 3/4″ | 100.0 | 25.4 | 160.0 | 98.0 | 63.5 | |
| 1″ | 129.0 | 50.5 | 175.0 | 98.0 | 63.5 | |
| 1 1/2″ | 159.0 | 50.5 | 207.0 | 120.0 | 85.0 | |
| 2″ | 190.0 | 64.0 | 213.4 | 120.0 | 85.0 | |
| 气动隔膜阀/3A .法兰式标准可根据客户要求 | ||||||
|
Size | A | B | H | H1 | Dc |
| 1/2″ | 100.0 | 25.4 | 156.3 | 98.0 | 63.5 | |
| 3/4″ | 100.0 | 25.4 | 160.0 | 98.0 | 63.5 | |
| 1″ | 129.0 | 50.5 | 175.0 | 98.0 | 63.5 | |
| 1 1/2″ | 159.0 | 50.5 | 207.0 | 120.0 | 85.0 | |
| 2″ | 190.0 | 64.0 | 213.4 | 120.0 | 85.0 | |
